modm::platform::DmaBase Class Reference
Platform HAL » Direct Memory Access (DMA)

#include <modm/platform/dma/dma_base.hpp>

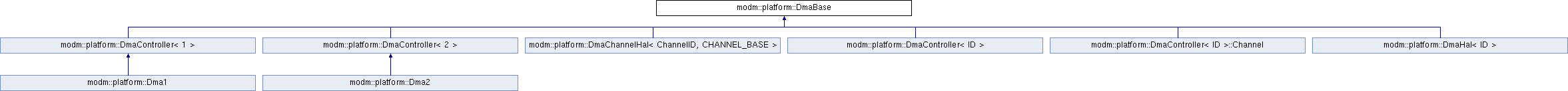

Inheritance diagram for modm::platform::DmaBase:
modm::platform::DmaController< 1 > modm::platform::DmaController< 2 > modm::platform::DmaChannelHal< ChannelID, CHANNEL_BASE > modm::platform::DmaController< ID > modm::platform::DmaController< ID >::Channel modm::platform::DmaHal< ID > modm::platform::Dma1 modm::platform::Dma2

Classes

struct  Nvic

struct  Nvic< 1 >

struct  Nvic< 2 >


Public Typedefs

using IrqHandler = void (*)(void)


Public Types

enum  Channel {
  Channel1 = 0, Channel2, Channel3, Channel4,
  Channel5, Channel6, Channel7
}

enum  Request { Any }

enum  Priority : uint32_t { Low = 0, Medium = DMA_CCR_PL_0, High = DMA_CCR_PL_1, VeryHigh = DMA_CCR_PL_1 | DMA_CCR_PL_0 }

enum  MemoryDataSize : uint32_t {
  Byte = 0, Bit8 = Byte, HalfWord = DMA_CCR_MSIZE_0, Bit16 = HalfWord,
  Word = DMA_CCR_MSIZE_1, Bit32 = Word
}

enum  PeripheralDataSize : uint32_t {
  Byte = 0, Bit8 = Byte, HalfWord = DMA_CCR_PSIZE_0, Bit16 = HalfWord,
  Word = DMA_CCR_PSIZE_1, Bit32 = Word
}

enum  MemoryIncrementMode : uint32_t { Fixed = 0, MemoryIncrementMode::Increment = DMA_CCR_MINC }

enum  PeripheralIncrementMode : uint32_t { Fixed = 0, PeripheralIncrementMode::Increment = DMA_CCR_PINC }

enum  CircularMode : uint32_t { Disabled = 0, CircularMode::Enabled = DMA_CCR_CIRC }

enum  DataTransferDirection : uint32_t { DataTransferDirection::PeripheralToMemory = 0, DataTransferDirection::MemoryToPeripheral = DMA_CCR_DIR, DataTransferDirection::MemoryToMemory = DMA_CCR_MEM2MEM }

enum  Signal : uint8_t {
  NoSignal, Ch1, Ch2, Ch3,
  Ch4, Rx, Trig, Tx,
  Up
}

enum  InterruptEnable : uint32_t { TransferComplete = DMA_CCR_TCIE, HalfTransfer = DMA_CCR_HTIE, TransferError = DMA_CCR_TEIE }

enum  InterruptFlags : uint8_t {
  Global = 0b0001, TransferComplete = 0b0010, HalfTransferComplete = 0b0100, Error = 0b1000,
  All = 0b1111
}


Public Member Functions

 MODM_FLAGS32 (InterruptEnable)

 MODM_FLAGS32 (InterruptFlags)


Static Protected Attributes

static constexpr uint32_t memoryMask

static constexpr uint32_t peripheralMask

static constexpr uint32_t configmask


Detailed Description

DMA

Author
Kevin Laeufer
Mike Wolfram

Member Enumeration Documentation

enum modm::platform::DmaBase::CircularMode : uint32_t
strong
Enum ValuesDocumentation
Enabled

circular mode

enum modm::platform::DmaBase::DataTransferDirection : uint32_t
strong
Enum ValuesDocumentation
PeripheralToMemory

Source: DMA_CPARx; Sink: DMA_CMARx.

MemoryToPeripheral

Source: DMA_CMARx; Sink: DMA_CPARx.

MemoryToMemory

Source: DMA_CPARx; Sink: DMA_CMARx.

enum modm::platform::DmaBase::MemoryDataSize : uint32_t
strong

In direct mode (if the FIFO is not used) MSIZE is forced by hardware to the same value as PSIZE

enum modm::platform::DmaBase::MemoryIncrementMode : uint32_t
strong
Enum ValuesDocumentation
Increment

incremented according to MemoryDataSize

enum modm::platform::DmaBase::PeripheralIncrementMode : uint32_t
strong
Enum ValuesDocumentation
Increment

incremented according to PeripheralDataSize

enum modm::platform::DmaBase::Signal : uint8_t
strong

Peripheral signals that can be used in DMA channels

Member Data Documentation

constexpr uint32_t modm::platform::DmaBase::configmask
staticprotectedconstexpr
Initial value:
DMA_CCR_CIRC |
DMA_CCR_PL_1 | DMA_CCR_PL_0
constexpr uint32_t modm::platform::DmaBase::memoryMask
staticprotectedconstexpr
Initial value:
DMA_CCR_MSIZE_0 | DMA_CCR_MSIZE_1 |
DMA_CCR_MINC |
DMA_CCR_DIR | DMA_CCR_MEM2MEM
constexpr uint32_t modm::platform::DmaBase::peripheralMask
staticprotectedconstexpr
Initial value:
DMA_CCR_PSIZE_0 | DMA_CCR_PSIZE_1 |
DMA_CCR_PINC |
DMA_CCR_DIR | DMA_CCR_MEM2MEM
