modm::platform::Gpio Struct Reference
Platform HAL » General Purpose I/O (GPIO)

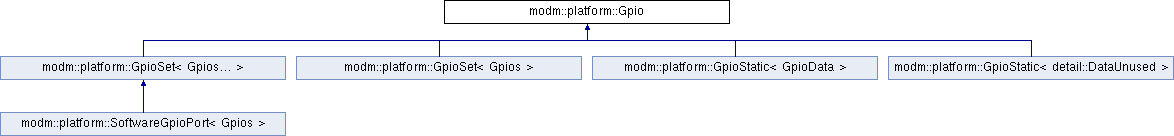

Inheritance diagram for modm::platform::Gpio:
modm::platform::GpioSet< Gpios... > modm::platform::GpioSet< Gpios > modm::platform::GpioStatic< GpioData > modm::platform::GpioStatic< detail::DataUnused > modm::platform::SoftwareGpioPort< Gpios >

Public Types

enum  InputType { InputType::Floating = 0x0, InputType::PullUp = 0x1, InputType::PullDown = 0x2 }

enum  OutputType { OutputType::PushPull = 0x0, OutputType::OpenDrain = 0x1 }

enum  OutputSpeed {
  Low = 0, Medium = 0x1, High = 0x2, OutputSpeed::VeryHigh = 0x3,
  MHz2 = Low, MHz25 = Medium, MHz50 = High, MHz100 = VeryHigh
}

enum  Port {
  A = 0, B = 1, C = 2, D = 3,
  E = 4, F = 5, G = 6, H = 7,
  I = 8, J = 9, K = 10
}
 The Port a Gpio Pin is connected to.


Member Enumeration Documentation

enum modm::platform::Gpio::InputType
strong
Enum ValuesDocumentation
Floating

floating on input

PullUp

pull-up on input

PullDown

pull-down on input

enum modm::platform::Gpio::OutputSpeed
strong
Enum ValuesDocumentation
VeryHigh

30 pF (80 MHz Output max speed on 15 pF)

enum modm::platform::Gpio::OutputType
strong
Enum ValuesDocumentation
PushPull

push-pull on output

OpenDrain

open-drain on output
